09.11.2023
Titanium parts in half the time
SME Aerospace Malaysia puts MAPAL tools to good use
The aircraft component structural supplier SME Aerospace approached MAPAL Malaysia with the request for an improved machining time for a titanium part. The latest generation of titanium tools and an improved machining strategy made it possible to achieve a time saving of over three hours per part.
In Kuala Lumpur, SME Aerospace (SMEA) manufactures parts for major aircraft manufacturers, including Boeing and Airbus. The company does not produce prototypes but has focused entirely on the series production of parts. With typical lot sizes close to the hundreds, more than a million parts of very different sizes are produced each year. The company employs around 800 people in Malaysia and is very well positioned with modern machinery to achieve the required performance in manufacturing.
The cost pressure felt by businesses around the world has also hit the supplier in Malaysia. Most of the workpieces are made of aluminium. SME Aerospace can machine structural parts up to four metres in size on its machines.
At the moment, the supplier only produces few titanium parts, but wants to expand this area. For this, SMEA seeks to increase productivity in titanium machining in order to achieve a higher output on the machines. The company turned to MAPAL Malaysia to machine a special part. MAPAL’s Asian site has been up and running since 2008 and is also located in the greater Kuala Lumpur area. The subsidiary is managed by Kang Hum Lim, who took over the family-run business from his father. Most of the 17 employees have been with the company for a long time and are very knowledgeable in their trade.
The subsidiary offers MAPAL’s entire range of products and services, plus comprehensive technical support. In addition to sales, there is also an on-site manufacturing unit for solid carbide tools and a regrinding service. They work together with local companies for coating. Many of MAPAL Malaysia’s customers come from the automotive sector, but the aerospace industry is also playing an increasingly important role. MAPAL Malaysia could draw from the experience of Senior Sales and Application Engineer Kien Keng Mak for this project. Before joining MAPAL, he was employed for many years by a company that manufactures structural parts for the aerospace industry. For the new project with SME Aerospace, his programming skills on the Catia CAD/CAM system were particularly useful, as it correctly implemented the specified contours of the aerospace part to be milled from the solid on the machine.
Parts for the Airbus A320

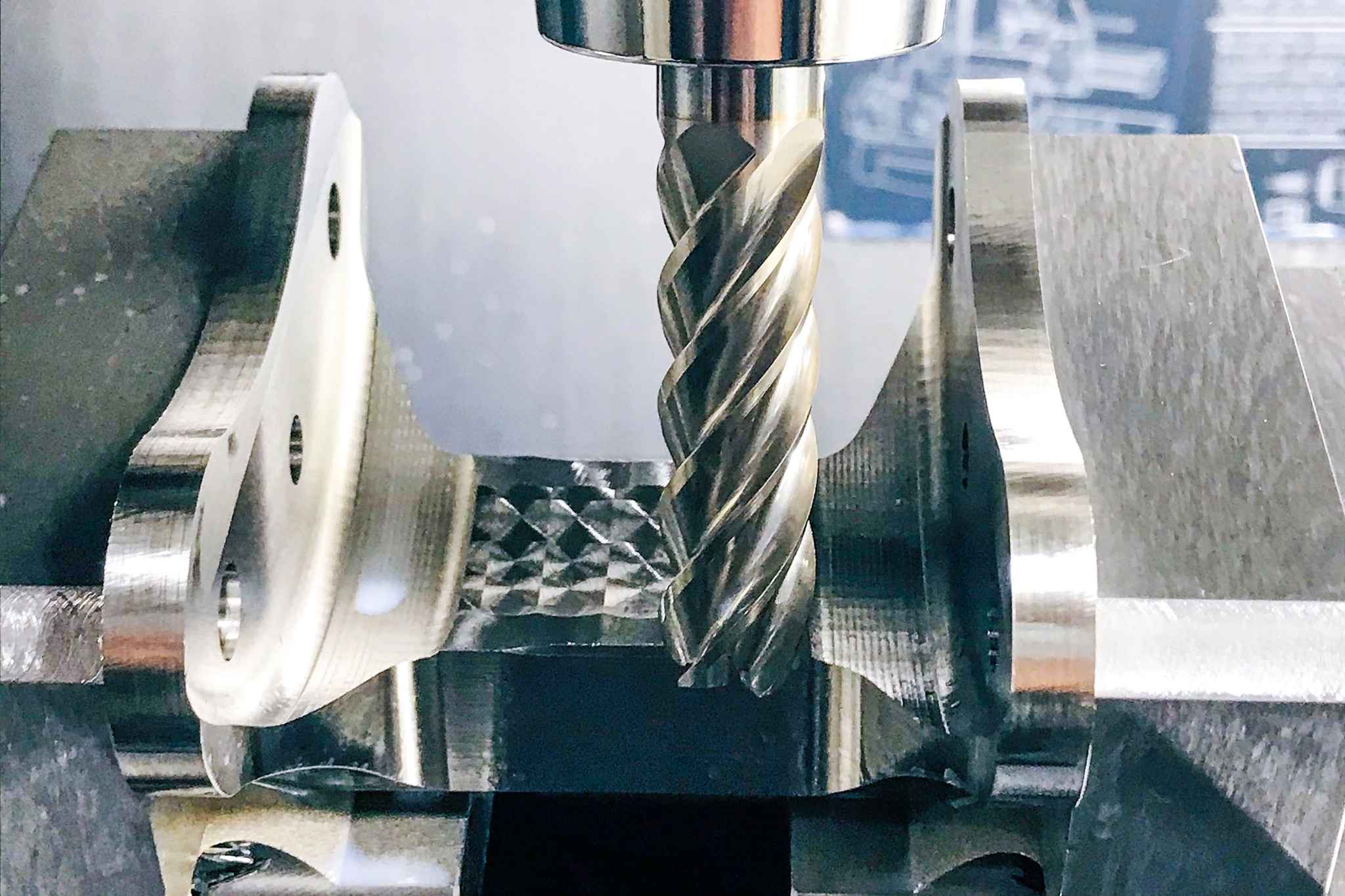

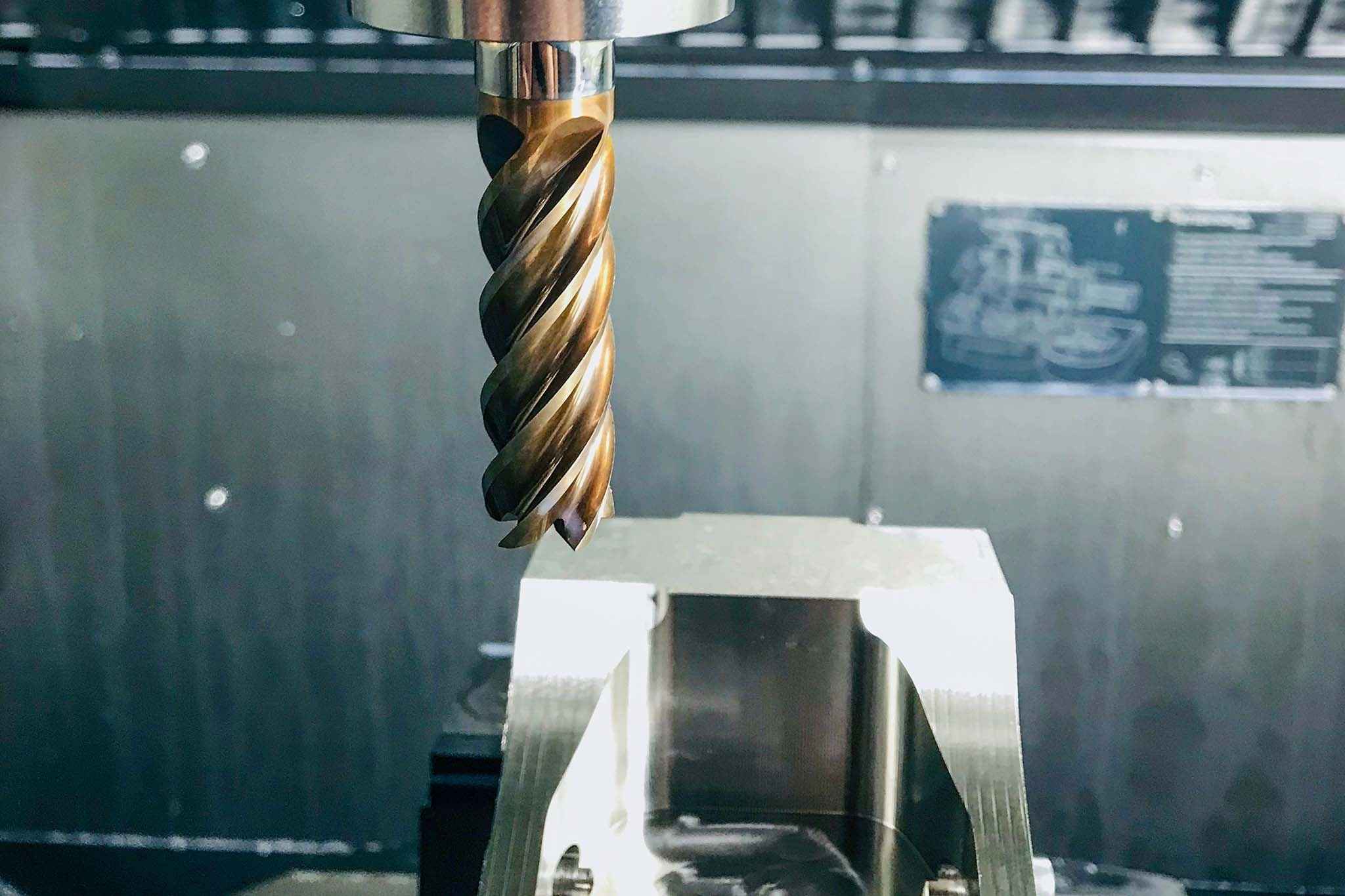

The Malaysian subsidiary then approached the titanium specialists at MAPAL’s headquarters in Aalen with this concept. There, they were amazed at the predicted time savings of almost 50 per cent. To verify the design, the TET-CAM team simulated the machining process again, with a particular focus on roughing, which made up about 65 per cent of the cycle time. In cooperation with the R&D department, machining strategies with solid carbide custom tools were developed and perfectly implemented in the CAD/CAM system Catia by MAPAL Malaysia. The project team says that this worked above all thanks to the excellent, open communication of all those involved. In this way, the specified contours of the part could be machined exactly from the solid.”
“We can only get the greatest possible customer benefit by running a simulation. Our TET-CAM team is the key to these kinds of projects here”, acknowledges Jens Ilg, who supports aerospace customers at MAPAL as Business Development Manager. “The team knows what the machine can do, what the machining should look like and how powerful our tools are.” In the end, the values from Kuala Lumpur and Aalen were very similar.

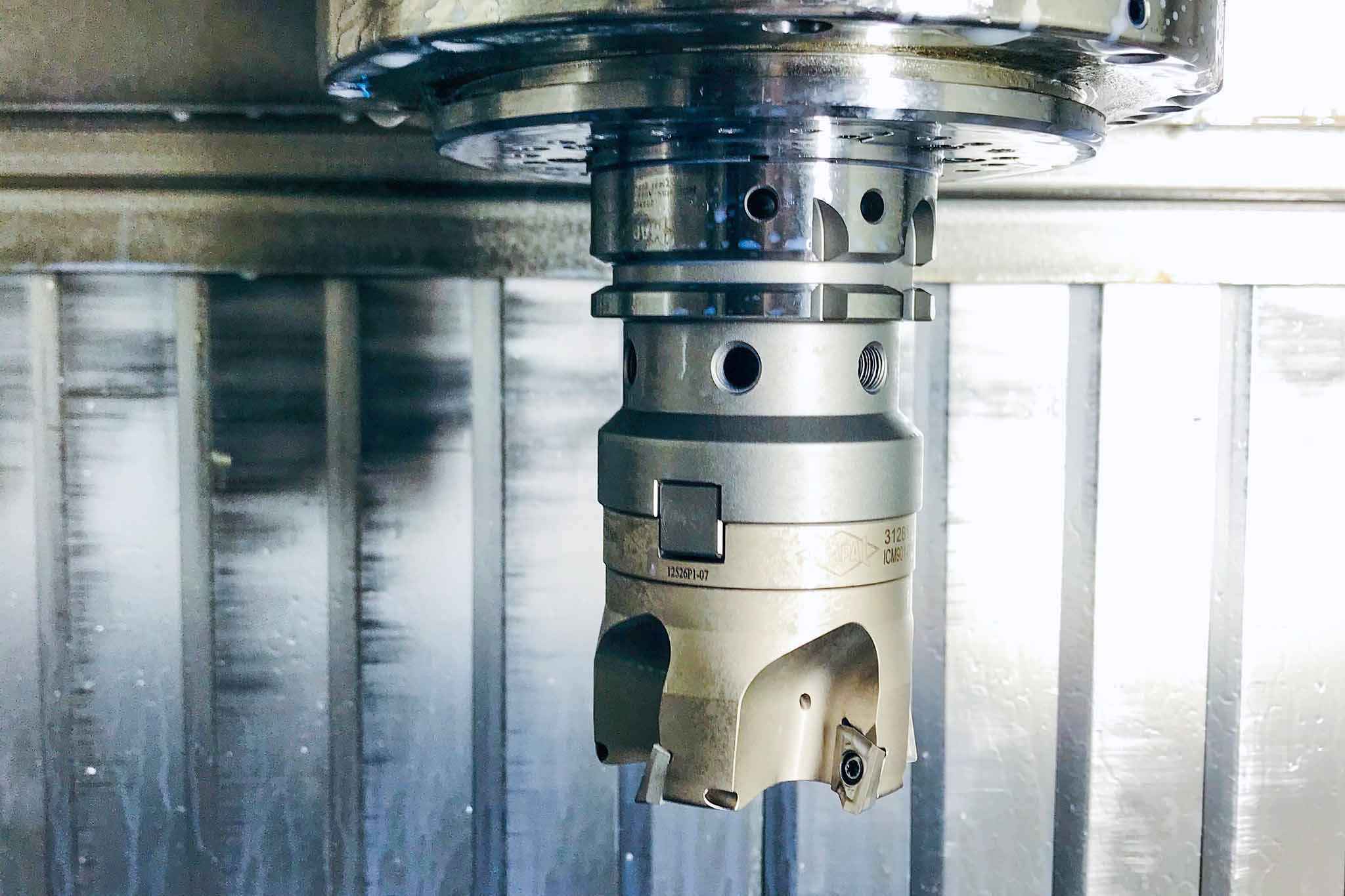

Simpler logistics thanks to indexable inserts

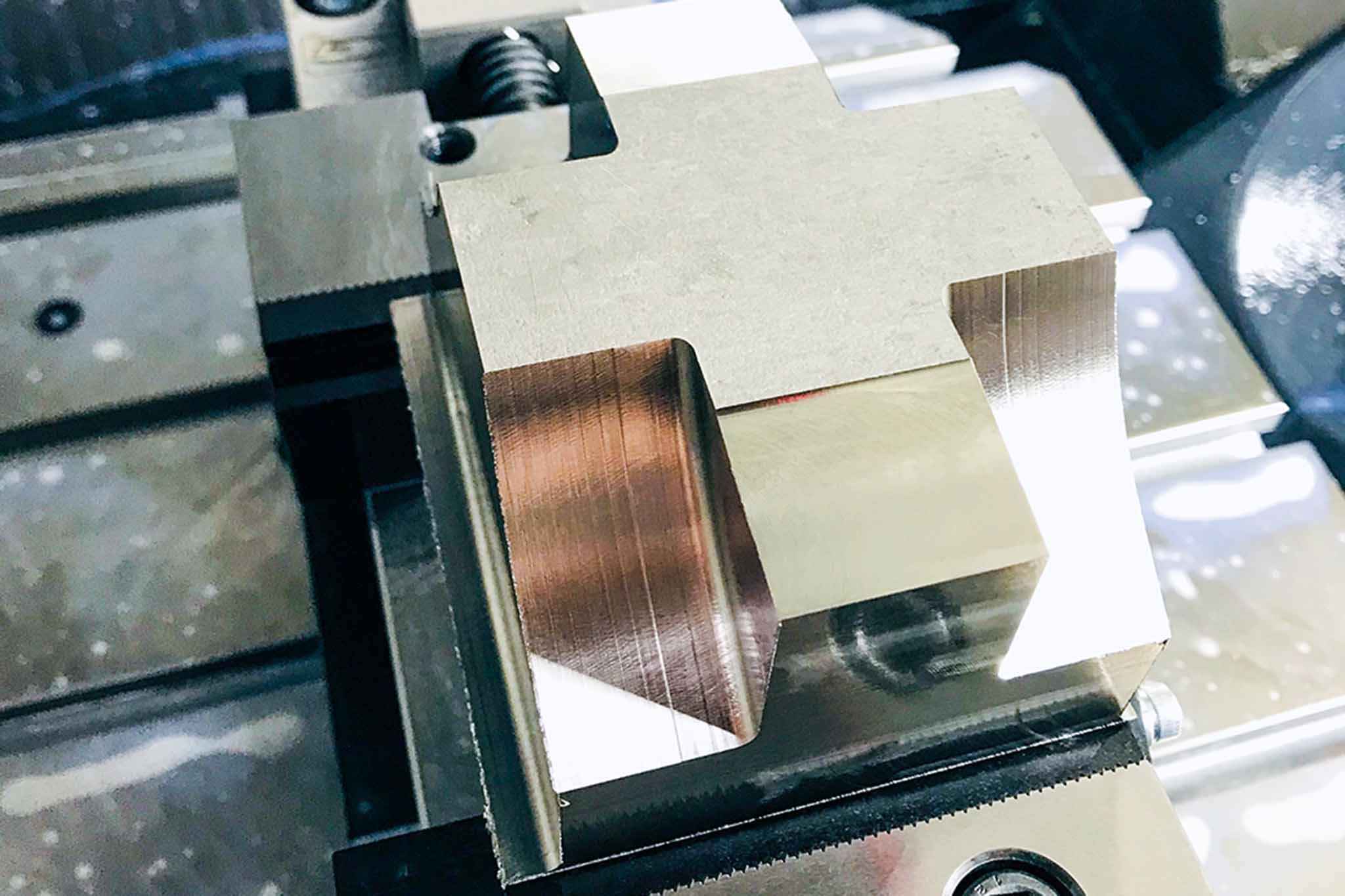

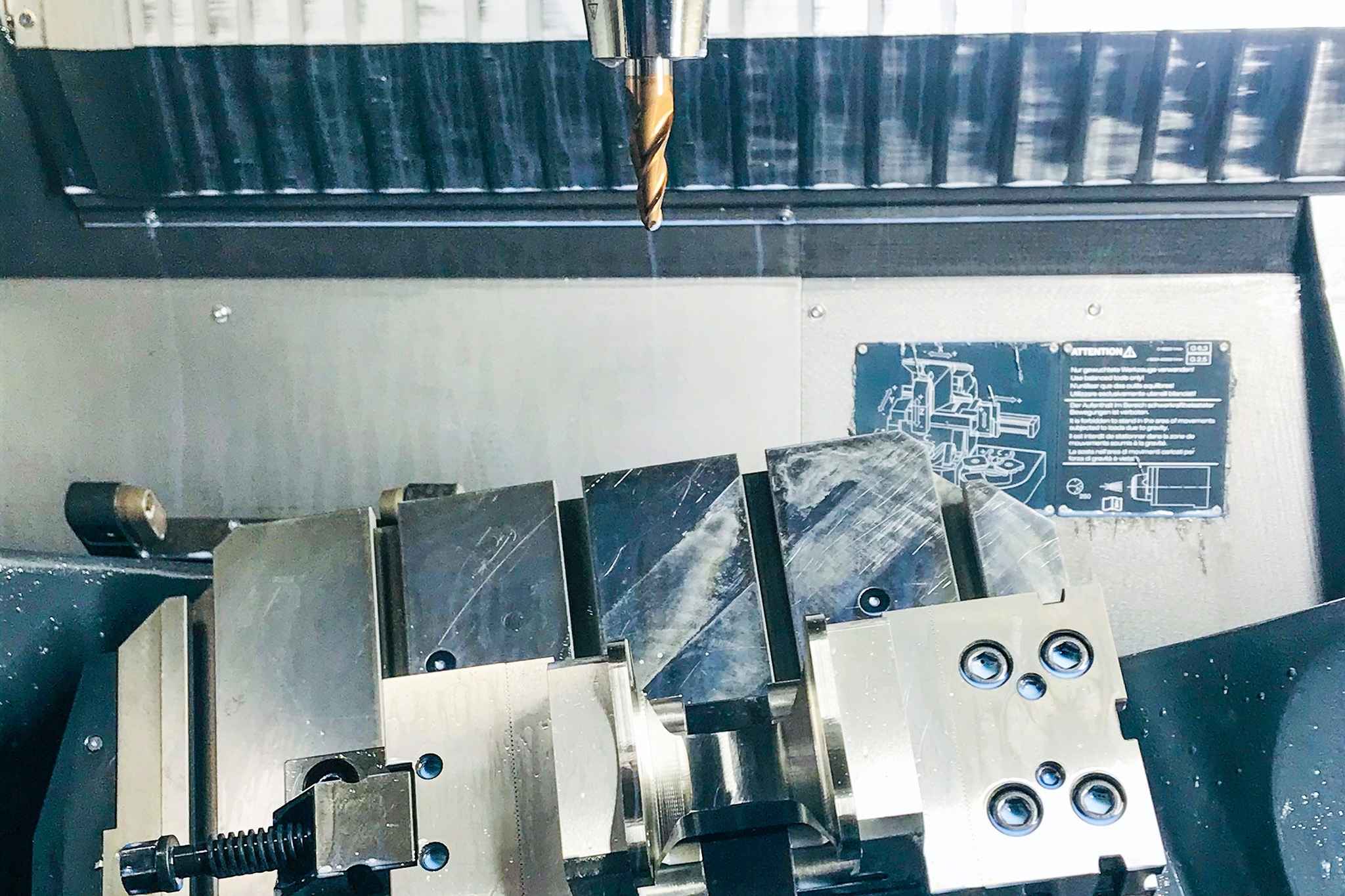

In order to reduce the machining time of the part by the predicted 50 per cent for the customer, MAPAL did not stop at replacing the previously used tools with high-tech tools for titanium. Instead, the specialists analysed the entire process and used clever programming tricks, tool features and machining strategies. The decision was made to machine in three clamping setups in order to prevent the part from deforming during milling. MAPAL Malaysia has designed the clamping fixtures for this itself. The matching chucks also came from MAPAL. They ensure that the coolant supply reaches the cutting edges perfectly and that there is reliable chip removal. Both are very important in titanium machining to avoid rapid tool wear. To be on the safe side, an external cooling system was included in addition to the internal coolant supply.
The MAPAL specialists completed the package deal for SMEA by programming the part directly on the customer’s computer, with the data of the machine on which the machining was to take place – a DMC 65 monoBlock.
Reliably hitting the target in three clamping setups
Damit am Ende nichts mehr schief geht, unterstützte Global Project Engineer Markus Beerhalter das Team von MAPAL Malaysia beim Einfahren. „Markus ist unser Mann für wichtige und kritische Fälle in Asien“, sagt Jens Ilg. „Er ist seit vielen Jahren für MAPAL tätig, kennt sich aus mit Werkzeuganwendungen und ist sehr gut vernetzt.“ Vor Ort konnte Beerhalter sein Know-how in der Titanbearbeitung einbringen. „Bei Titan klingt das Geräusch während der Zerspanung sehr unterschiedlich“, berichtet er. „Bei der Optimierung der Schnittwerte beziehen wir daher auch den Sound der Bearbeitung mit ein. Vibrationen oder schlechte Kühlung wirken sich sehr negativ auf die Standzeit der Werkzeuge und die Qualität des Bauteils aus. Wenn ein Mitarbeiter zum ersten Mal Titanwerkzeuge einsetzt, tut er sich etwas schwer, dies zu erkennen, weil die Schnittwerte sich erheblich von der Bearbeitung anderer Materialien unterscheiden.“ Trotzdem wurde zum Einfahren Dummy-Material benutzt, um sicherzustellen, dass die Fünf-Achs-Bearbeitung ohne Hindernisse läuft und wirklich keine Störkonturen im Weg sind. Die Serienproduktion konnte
daraufhin anlaufen, ohne Ausschuss mit dem teuren Rohmaterial produziert zu haben.
Die Bearbeitungszeit wurde schließlich auf 3:20 Stunden verkürzt und liegt damit noch 14 Minuten unter der vereinbarten Zeit. Mit diesem Resultat und der Betreuung durch MAPAL ist SME Aerospace sehr zufrieden. Als nächstes ist bereits ein sehr ähnliches Bauteil im Gespräch, nämlich ein Stopper für die Querruderumlenkung.
